Introduction

Welcome to Pocket-Sized Kubernetes at Durham HPC Days 2026! In this tutorial, you'll build a working Kubernetes cluster from scratch using Raspberry Pi hardware, deploy containerised applications, and gain experience working with distributed systems.

Aims

By the end of the tutorial, you will have:

  • A basic understanding of Kubernetes architecture and its use in research computing
  • Built a multi-node k3s cluster on Raspberry Pi hardware
  • Deployed and managed containerised applications on Kubernetes
  • Observed key Kubernetes features including self-healing and scaling
  • Gained practical skills transferable to HPC and cloud environments

Who We Are

This workshop is delivered by the Cloud Native Special Interest Group (SIG) with support from the Computational Abilities Knowledge Exchange (CAKE). We're a new community of research software engineers and technical professionals exploring cloud-native technologies in research software and digital infrastructure. You can find more about the SIG and how to get involved at https://cloudnative-sig.ac.uk/.

Following Along at Home

All code and resources used in this tutorial are available on the tutorial's GitHub repository. If you want to follow along at home or perhaps run your own workshop, you can replicate our setup with:

  • 2-4 Raspberry Pi boards (Pi 3B+ or newer recommended—see Hardware Requirements)
  • MicroSD cards (16GB+) & Power Supplies for each RPi
  • at least one microHDMI-HDMI cable plus external display
  • Network connectivity (WiFi or Ethernet/switches)
  • A laptop or PC with SSH client

To prepare each RPi, we recommend using the Raspberry Pi Imager to install RPi OS Lite 64-Bit for the device. The installer allows you to set the RPi hostname, configure wireless connectivity, enable SSH and create an initial login account.

On first boot, connect the device to an external monitor and log in to check network connectivity and obtain the device IP address. In order to install k3s, you will need to enable memory cgroups by editing /boot/firmware/cmdline.txt and appending to the end of the existing line:

cgroup_memory=1 cgroup_enable=memory
After saving the file, reboot the RPi. You can now disconnect the external monitor and connect via SSH from your own laptop or PC.

Kubernetes Anywhere

While we use Raspberry Pis for this tutorial, k3s can be installed on a wide range of hardware from homelab servers to cloud server instances.

Introduction to Kubernetes

What is Kubernetes

Kubernetes (k8s) is an open-source container orchestration platform that automates deployment, scaling, and management of containerised applications across groups of machines.

Kubernetes vs Docker Compose

Docker runs applications from built images in sandboxed environments called containers. Docker Compose is a declarative tool that allows you to run groups of containers with networking and storage volumes on a single host. Kubernetes goes beyond Docker Compose by providing an orchestration pipeline for multi-host, multi-container applications. In other words, it allows complex containerised applications to run across multiple hosts in a cluster. Kubernetes has powerful automation and management features for scheduling, scaling and resilience.

On Docker Swarm

Docker Engine's Swarm mode has many goals in common with Kubernetes, but is not as actively developed, feature-rich or has the same level of resilience for production use.

Using Kubernetes in Research Computing

Developing a Kubernetes cluster is a good approach when you need to manage multiple containerised services across different machines, and may benefit from:

  • Automatic scaling of workloads based on demand
  • Rolling updates with minimal downtime
  • Self-healing, resilient systems
  • Portability between on-prem and cloud infrastructure

On the other hand, Kubernetes introduces complexity and has a significant learning curve, and so may not be appropriate for:

  • Simple container applications that can run on a single host (use Docker Compose)
  • HPC batch job management (use SLURM)
  • Services offered by a cloud provider or technology you are already invested in
  • Large-scale parallel filesystems (use dedicated solutions, e.g., Lustre)

Kubernetes and HPC

While we will focus on learning Kubernetes through standard application deployments, those interested in HPC integration should explore the slinky project by SchemMD that enables interoperability between SLURM and Kubernetes. This includes slurm-operator for running SLURM on Kubernetes (as pods) and slurm-bridge for using SLURM to schedule Kubernetes workloads.

Architecture Overview

Kubernetes follows a control plane + worker nodes architecture:

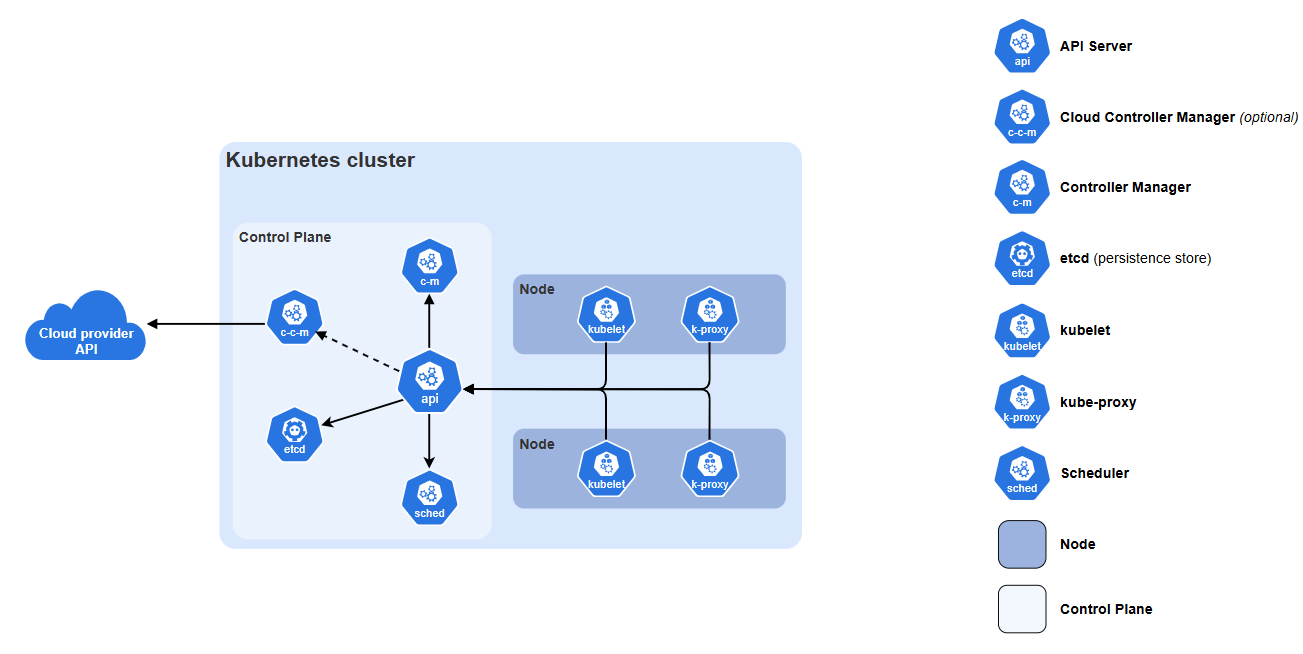

The components of a Kubernetes Cluster

The components of a Kubernetes cluster. Overview Components

Key Components

  • Node: A physical or virtual machine in the cluster
  • Pod: The smallest deployable unit consisting of one more containers that share storage/network
  • Deployment: Manages a set of identical pods (defines desired state)
  • Service: Stable network endpoint to access pods
  • Control Plane: The brain of the cluster, makes decisions based on the current cluster state, accessible via the API Server
  • Worker Nodes: Run the containerised applications using a container runtime, managed by a kubelet agent.

Other critical components include the Controller Manager and Scheduler on the control node and etcd, a key-value store for cluster data.

Further Reading

Further information on Kubernetes architecture can be found on our Introduction to Kubernetes workshop materials.

How it works

Kubernetes follows a declarative approach where you define the target state of the applications running in the cluster, and Kubernetes works continuously to achieve that state. For example, if a node goes down, Kubernetes may distribute its workload to other nodes to ensure services for running applications are not interrupted. Kubernetes management follows the Infrastructure as Code paradigm and is readily integrated with GitOps using high-level tools such as ArgoCD.
